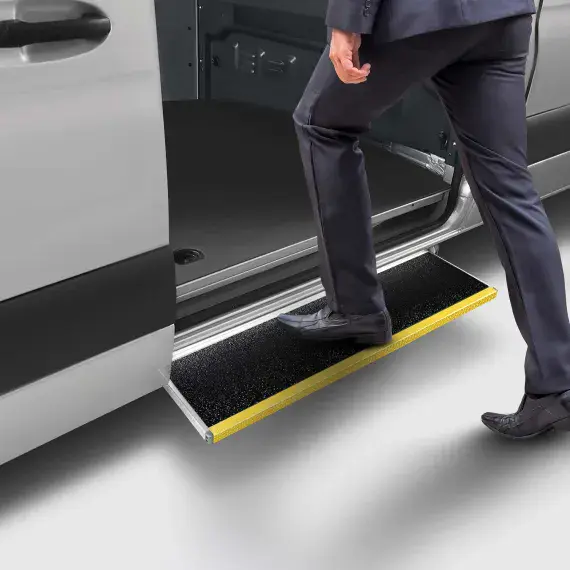

Our in-house products set a new standard in terms of safety, reliability and quality. In the field of electric steps, the AlphaDynamik series E1 was developed with the following highlights:

• Closed cassette system
• Slip resistance R13 according to DIN 75078-1 (KMP)
• Duplex coating
• POWER MODE: Short-term increased current supply to release blockages
• Yellow reflective stripe

• Step coating

• Duplex coated housing

• Certification

• CE marking
• ECE R10 certificate
• E1 steps now meet protection class IP57 (Certified according to DIN EN 60529 and ISO 20653:2013)

• GIP57 means that the level is "dust protected" and "protected against temporary immersion". Furthermore, the level offers complete protection against live parts.

• Step slip resistance

• Step slip resistance R13 according to DIN 51130
• Displacement space V04 according to DIN 51130

• High abrasion resistance (aluminium oxide grain)

• UV resistant and temperature stable
• Resistant to chemicals (oil, brake fluid,...)
• Classification C according to DIN 51097
• Footboard covering tested on 1 million footfalls

• Step features

• Standby mode I<0.1mA
• Simple emergency release
• Automatic collision detection
• Automatic load detection (15kg)
• Automatic or manual mode
• Aluminium step and cassette
