Experience the power of light with OZZ XB1 P20″ dynamic LED light bar. This innovative light bar features dynamic start-up position light in white and orange, creating a modern look for your vehicle. This 544 mm light bar delivers 7000 lumen, providing 1 lux at a distance of 590 meters. The driving beam pattern ensures optimal visibility with a wide and long-range reach. The light has a color temperature of 5000 K, offering pleasant illumination in all conditions.
Specifications
Type of lampLED
Type of LEDboth sides 8pcs OSRAM P9 middle 6pc CREE XPP
Pcs LED14.0
Voltage10-32V DC
Theoretical effect (W) 12V140.0
Theoretical effect (W) 24V140.0
Actual effect (W) 12V120
Actual effect (W) 24V120 W
Theoretical lumen (Lm)11200.0
Actual lumen (Lm)6500~7000
Kelvin (K)5000
IP-class (IP)IP68/IP69K
Beam patternDriving
Position lightdynamic white and amber
Connection4-pin DT male + female
Cable length (mm)1000 (800+200)
Material bracketStainless steel
Material chassiAluminum
Material lensPolycarbonate

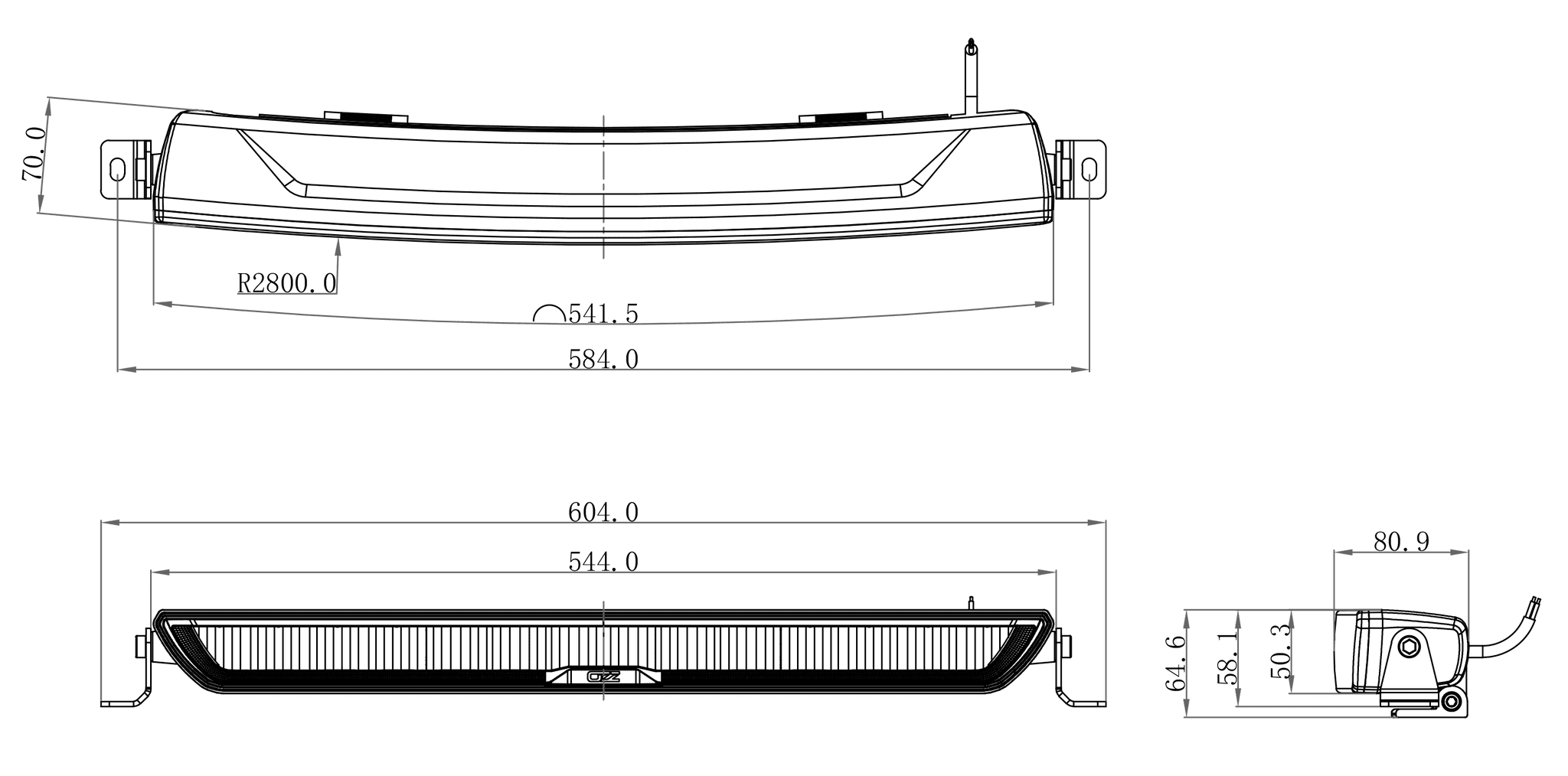

LxDxH (mm)544×80,9×50,3
Height including bracket (mm)58.1
Diameter (mm)541.5
Operating temperature-40 – +60°C
E-mark approvalR112, R7
EMCECE R10
Ref. no50
Nominal current at 12V8.62 A
Nominal current at 24V4.31 A
