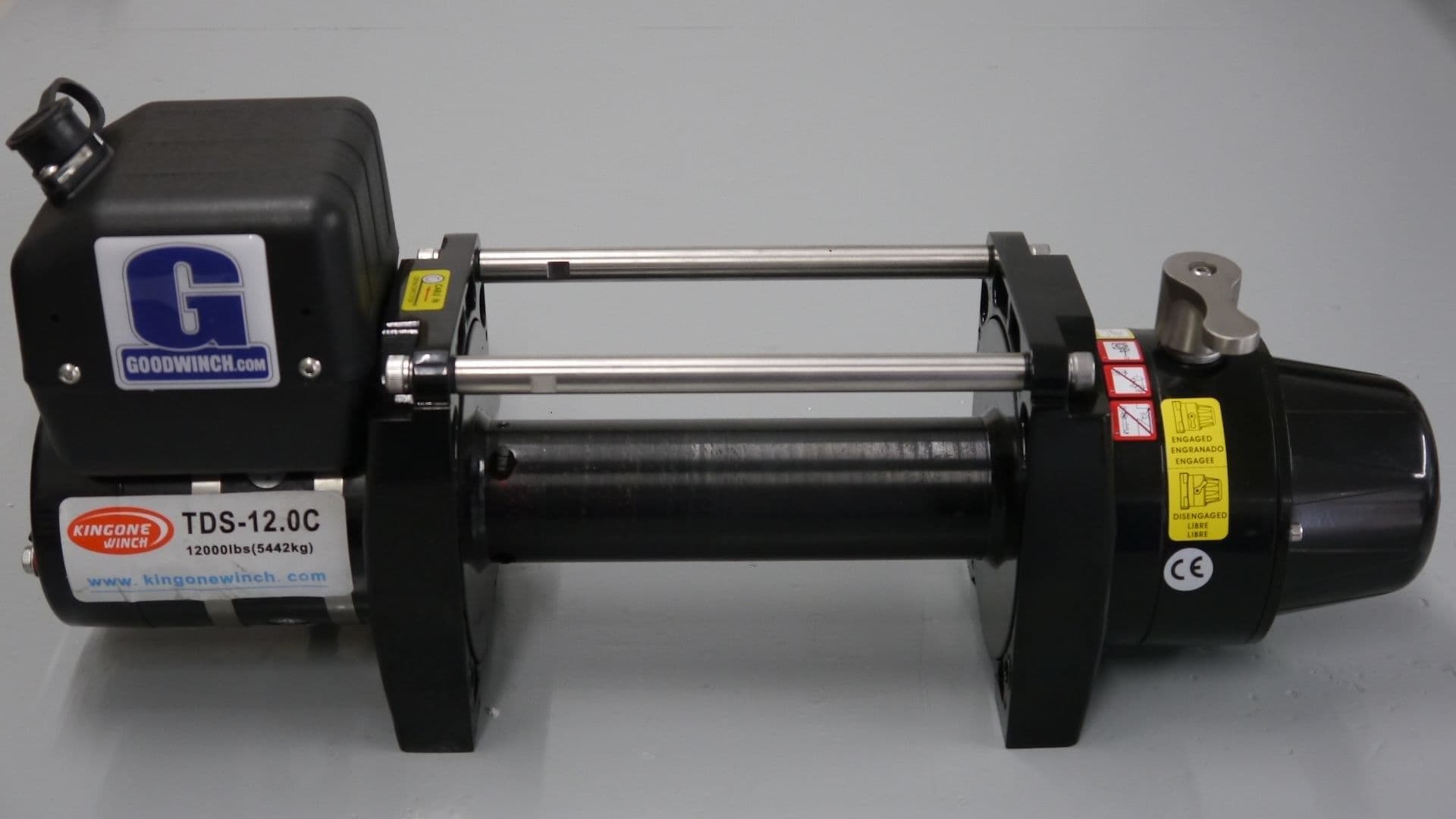

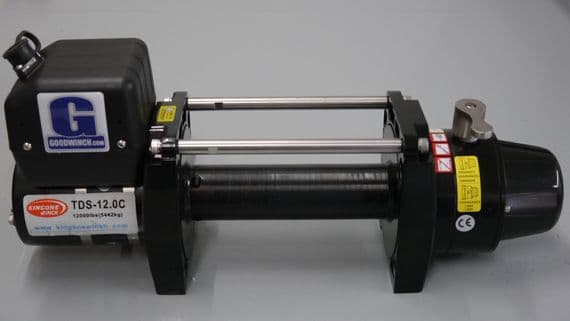

Goodwinch TDS-12.0c with solenoid pack, 12,000 lbs 12v or 24v

Product Description

Goodwinch TDS-12.0c with solenoid pack over the motor, 12,000 lbs c/w  swing away pulley block and wired Remote Handset. 254:1 ratio. Ideal for recovery trucks winching up to 4 tonnes, and heavy off road use. Upgrade to Dyneema® 11mm Bowrope available.

Please include the Rhodes vans cable kit to make installation a breeze with the electrical cable needed to move the solenoid to under the bonnet and the cable rated to run from the solenoid back to the battery under the front row seats.  Includes terminal boots and pre crimped wiring ends.

Line Pull 12,000 lbs (5,442 kg)
Motor 6.8 HP (12 volt) 6.8 HP (24 volt)
Gear Train Heavy duty 3 stage planetary
Gear Ratio 254:1
Freespool Rotating Ring Gear
Braking Automatic Double Taper
Wire Rope Size 9.5mm x 27.4m (90’)
Dimensions 12.0i 612mm x 165mm x 250mm high
12.0c 612mm x 165mm x 266mm high
(Including Solenoids)
Drum Diameter 63.5mm (2.5”)
Drum Length 229mm (9”)
Weight with wire rope and
roller fairleads		 52 kg
Weight with
Dyneema® Bowrope
and aluminium hawse		 37 kg
Switching method 5m (17’) Rubber handheld remote
Switching mechanism Heavy duty sealed solenoids
Roller fairleads Standard
Swingaway pulley block Standard
Colour coded 1.5m wiring
harness		 Standard
Alloy safety hooks fitted to
all ropes		 Standard
PERFORMANCE
No load speed 29 feet/min (9m/min)
For 12 volt 50 amps
and 24 volt 28 amps

Specifications

Weight
20kg
